SMALL UNITS

TO&Es OF SMALL UNITS: GERMAN AND SOVIET GROUND ARMY ORGANIZATION IN 1941

The essential element for war waging at the time of Barbarossa was the infantry soldier: a uniformed young man armed with a rifle. Roughly 87% of the German divisional groupings earmarked for the invasion on 22 June 1941 were infantry formations (including a small number of motorized infantry, mountain, Jager, and security divisions). Likewise, 63% of the Soviet divisions facing the Germans were rifle divisions. Even in the German and Soviet armored and mechanized divisions, the bulk of the soldiers were infantry soldiers.

These foot warriors armed only with small arms outnumbered any other soldier category by far in both armies.

The ideal infantry soldier should be very lethal, invulnerable, invisible, autonomous, fast-moving and with the ability to displace over long distances quickly. He should be comfortable operating in any weather, day or night as well.

Technological and physical constraints in the late ‘30s placed definite restrictions on the designers, which found it impossible to deliver such aggressive goals, but they made determined efforts to come up with the best answers for their time. The rifle or carbine was their deadly weapon and it was adequate to incapacitate an enemy infantryman at distances of 1000m (3000 ft) or less if the soldier had a direct line-of-sight to the adversary. The actual maximum practical distance was typically 500m because of aiming difficulties at larger distances without a rifle scope. Since these weapons were bolt-action firearms, they were capable of firing one round at a time using a 5-clip magazine to reduce reload times. This firepower was not enough to overwhelm a small group of enemies advancing rapidly.

The fabric uniform he wore did not shield him against a bullet, but to reduce his vulnerability the designers equipped him with a helmet and a shovel. The first protected the head of the combatant from a bullet fired from a distance. The second helped to safeguard the warrior’s body by allowing him to dig trenches in the ground. In addition, he carried a gas mask that protected him against chemical warfare.

Since invisibility was out of the question, the next best thing is low-visibility. The uniforms were dyed in inconspicuous colors (green-gray for the Germans and brown for the Soviets) that blended more or less, with the surrounding terrain. Later, the Germans would introduce camouflaged outfits to increase concealment.

The combatant equipment included gear to carry additional ammunition, food, water, utensils, dressings, cleaning kits for the firearm and for himself, and extra clothing for protection against cold and rain. This baggage granted him a limited autonomy of 1 to 2 days if fighting was light.

The designers set a limit of around 30 kg (65 lbs.) of total load on the foot soldier to allow these young men to march long distances and to move with relative ease while fighting. To move faster in the field of battle they could put aside part of the gear.

Since movement depended on his own legs, proper footwear was paramount. Comfortable and rugged tall boots that prevented dirt to fall inside the shoes, afforded protection against the elements and provided a good grip on different terrains to avoid slippage .

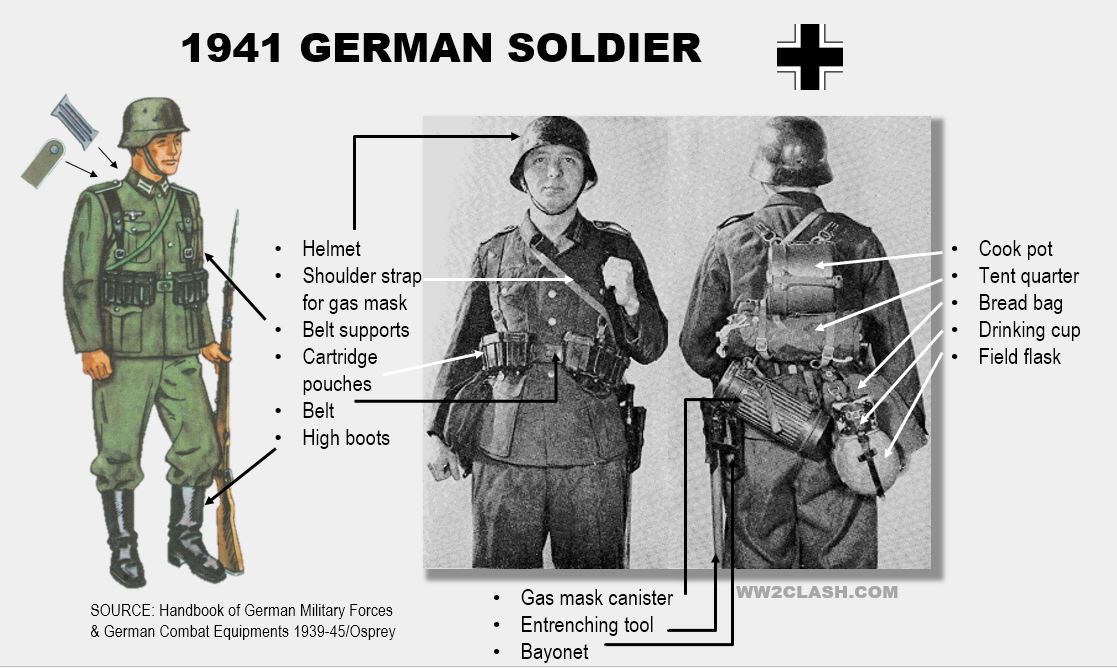

German infantryman and gear

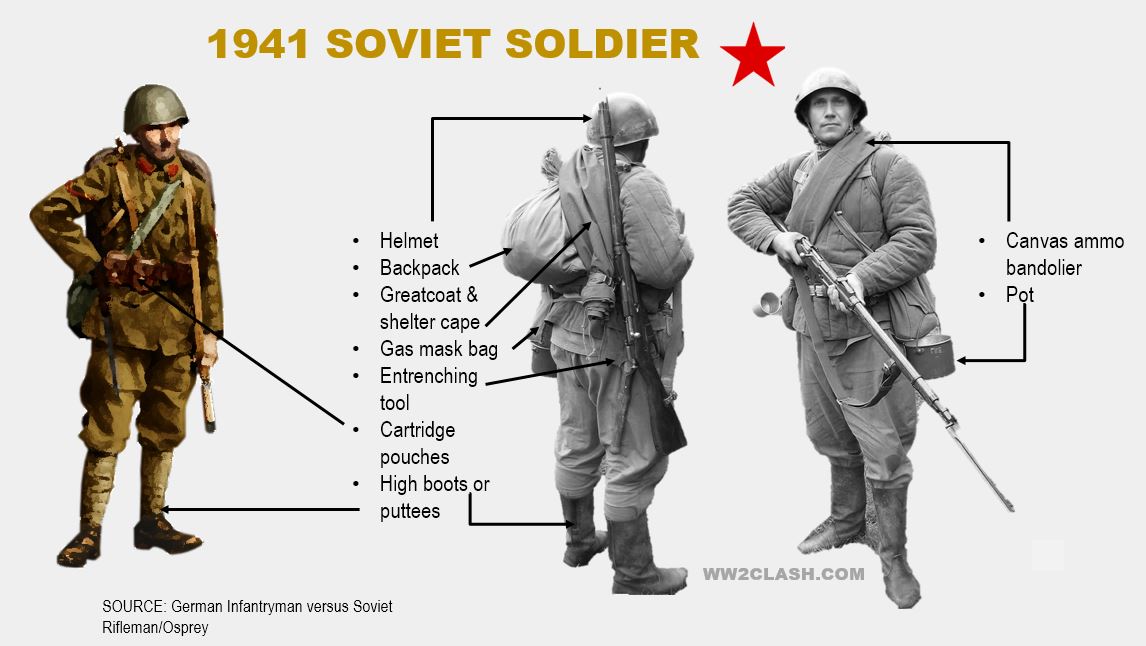

Equipment of Soviet infantryman was similar to the adversary’s
THE SQUAD

All combat is small unit combat. The outcome of a large battle is the aggregate of many small-unit skirmishes. The squad is the smallest combat unit with a fixed organization.

One common attribute that will be found in any fighting unit starting with the squad, is that the organization consisted on a number of identical, less complex units strengthened by specialized detachments to increase firepower and to improve command & control and logistics. A German squad had 10 soldiers:

a) A maneuver team composed of 6 soldiers armed with the bolt-action Mauser 98k carbine. The base unit is the individual soldier.

b) A light machine-gun team of 3 members: machine gunner, helper, and spotter, armed with 2 pistols and a light machine gun (MG34). The firepower of this weapon was much greater than that of the whole maneuver group combined. It could deliver 900 rpm fired from 50-round magazines. This team provided additional firepower.

c) A leader (a sergeant, -non-commissioned officer-) armed with a submachine gun (MP38 or MP40) that could fire 500 rpm at short distances (the cartridge was smaller than that of the rifle or machine gun) from 32-round magazines. He gave his orders either verbally, with a whistle or with hand signals. The leader commanded the squad and was responsible to insure it had enough ammo.

Depending on the mission the soldiers might carry with them hand grenades for close quarters fighting (up to 30m), bayonets and explosive charges (for even closer quarters fighting), and smoke bombs to lay smoke curtains that rendered them invisible to the enemy (for attacking or retreating).

Thanks to its firepower, the machine gun team was the primary element. For defense, it had the capability to stop dead in its tracks a large group of soldiers. The rest of the squad protected its flanks. In the attack, the machine gun fired a heavy curtain of projectiles to stop the enemy from moving and to force it to look for cover, allowing the mobile team to maneuver around the enemy position outflanking it. When the attacked rivals found themselves assailed from the front and the back of their positions, they usually retreated.

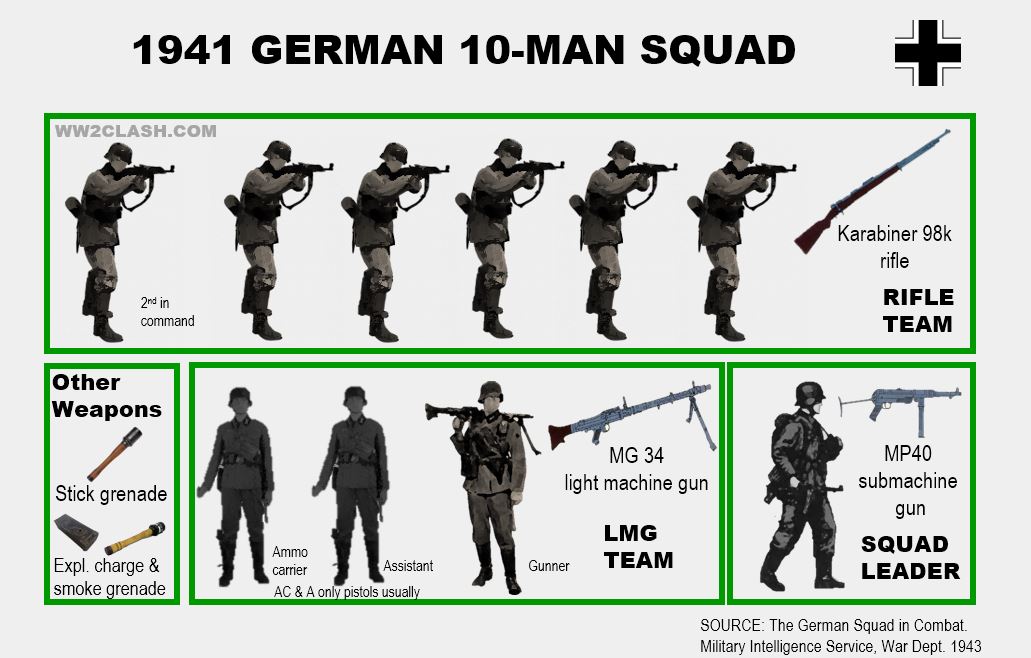

1941 German squad composition.

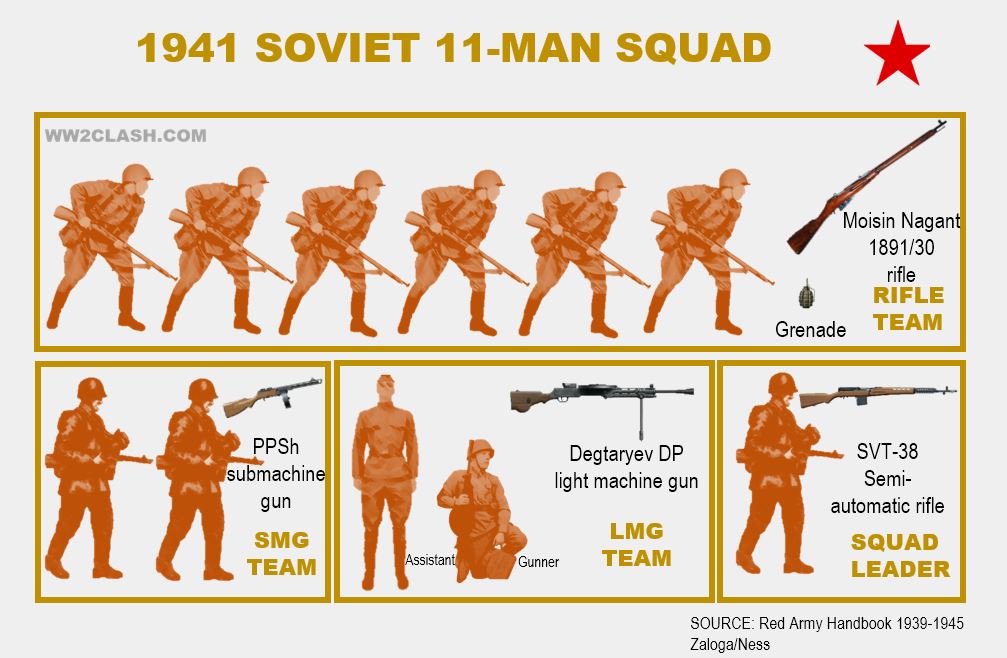

Soviet squad in 1941

The Soviet squad was numerically larger, 11 soldiers and had slightly heavier firepower thanks to a second submachine gun and a semi-automatic rifle (not always available). The PPSh SMG fired 900 rpm, or about the same as the Degtaryev DP light machine gun, although the latter had a range 8 times greater thanks to its larger sized ammunition.

The Moisin Nagant 1891/30 was a bolt action rifle capable to shoot one round at a time, but the SVT-38 semi-automatic rifle could fire one round after the other by simply pressing the trigger.

Squads of both armies only possessed small firearms to fight.

PLATOONS

The platoon was the next larger-in-size combat unit and it was more complex. A Lieutenant (an officer) would typically lead a unit of this size. The German platoon consisted of 4 squads, a light mortar team for added firepower and a headquarters with 3 messengers, a stretcher bearer and an HQ leader supporting the platoon commander. This unit was 49 men strong with 5 sub-machine guns, 4 light machine guns and 1 light 50mm mortar.

The German platoon occupied a front that ranged between 200m (in the attack) to 1000 m (fighting a delaying action) across, so lacking radio, the need for messengers to convey the orders to all the squads is apparent. For the same reason the squads were clustered near each other.

The Soviet platoon also included 4 squads and a light mortar team, but the leader only had the help of an assistant and one messenger, making communication and control less responsive relative to the German platoon. It was 51 men strong, with 9 sub-machine guns, 4 light machine guns and 1 light 50mm mortar.

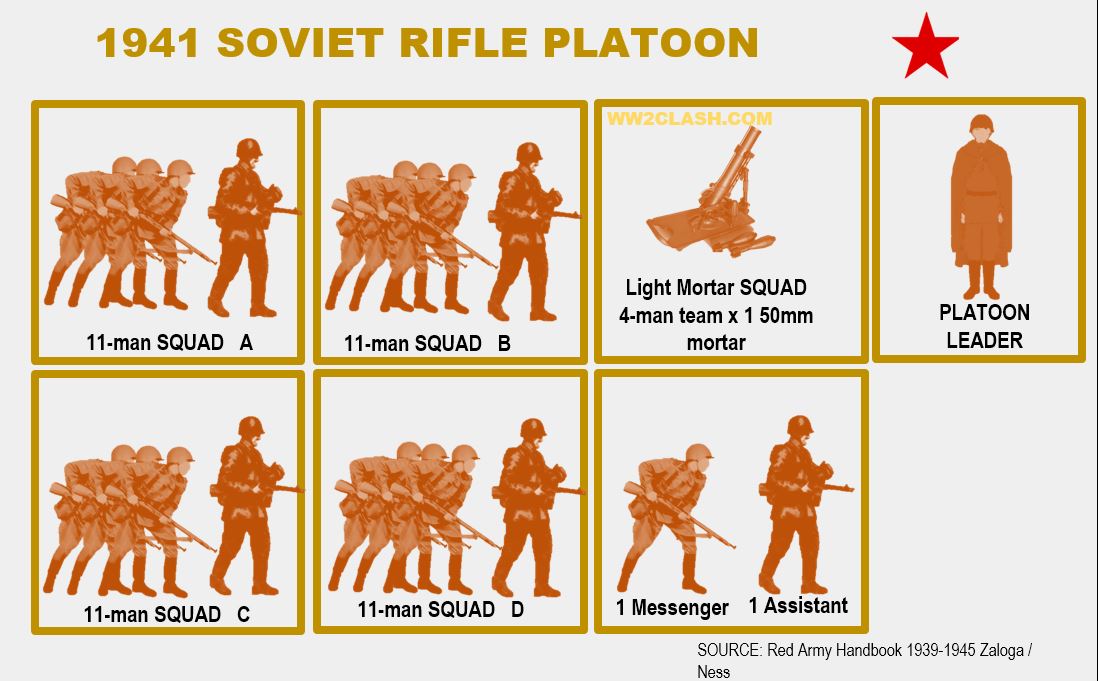

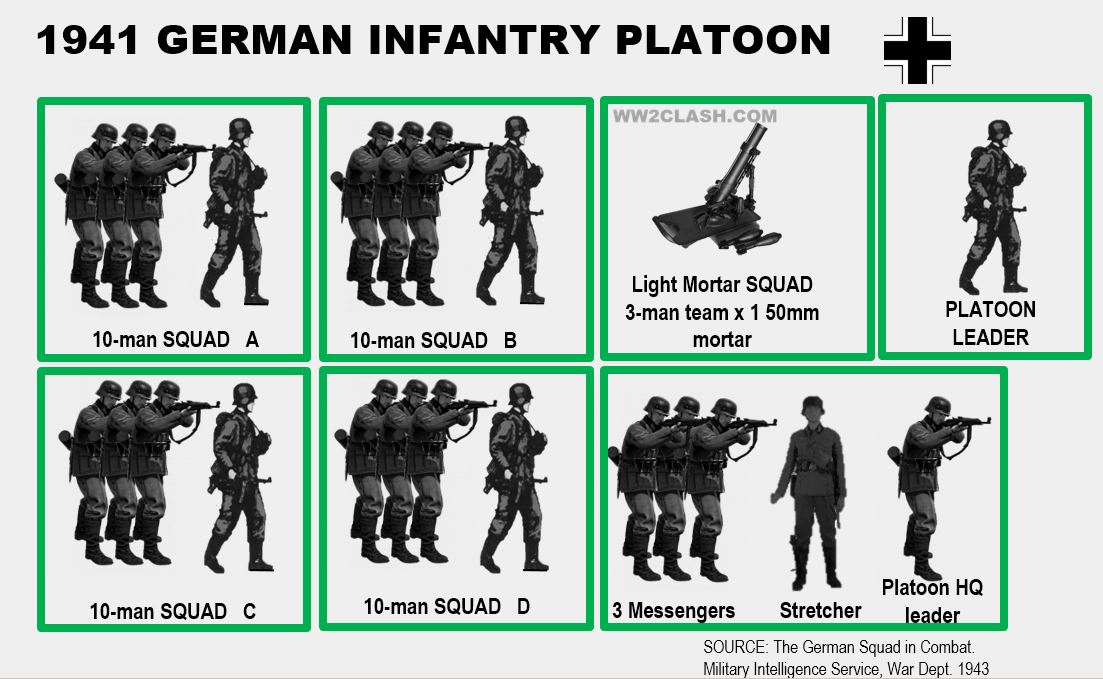

German Platoon (Above right) and Soviet Platoon (Above). Although the latter had more firepower, the former had better command and control resources that allowed it to operate more effectively
COMPANIES

The level above platoon is the Company. In the Wehrmacht, the infantry company had 3 platoons; an antitank rifle section that allowed to tackle light tanks; a much larger headquarters commanded by a captain that now included a radio set and permitted rapid communication and coordination with the battalion HQ at greater distances. Thus equipped, companies could fight more spread out if needed. Equally important, by continually receiving up-to-date information, the battalion commander could take advantage of opportunities faster. 7% of the Company manpower consisted of the HQ.

In addition, 10% of the company’s men were in logistics support to provide the unit with more autonomy. The Germans allocated a combat train of 3 horse-drawn wagons to collect ammo from the battalion collect points, 1 ration wagon (including fodder for the horses) and 1 baggage truck.

Each platoon and the HQ also contained one wagon to move ammo and equipment from the company collecting point wherever they required it.

The German company was 187 men strong and controlled 16 sub-machine guns, 12 light machine guns, three 50mm mortars, and 3 AT rifles. It covered a front of 500m length when attacking and 1000m on the defense. When retreating it could cover a line 2000m long.

The Soviet Rifle company had 177 men with 27 sub-machine guns, 12 light machine guns, three 50mm mortars, and 2 heavy machine guns. Although its firepower was slightly greater, its means of command and control and logistics were inferior. Not only was the HQ smaller, but it lacked radio and there were only 2 horse-towed wagons for the full company. This meant that the companies had to fight close to the battalion HQ to maintain the communication and they responded slower to orders from it. It also meant that the company depended on the regiment’s help for resupply in case of heavy fighting.

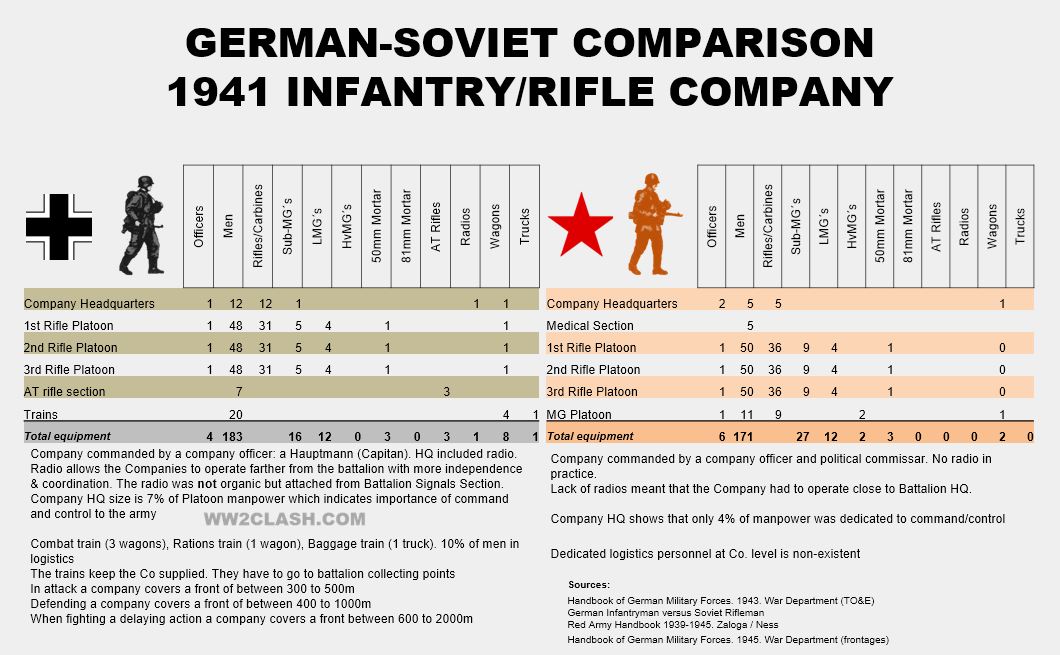

German and Soviet Companies. Although the combat elements were similar, the former was better balanced thanks to superior logistics and command & control
BATTALIONS

Above companies, there were the battalions. These were the largest formation equipped exclusively with small arms and light mortars. German battalions, led by majors, had 3 infantry companies that enjoyed the support of a 4th heavy machine gun Company. The latter had 12 heavy machine guns (MG34 in tripod mount) and six 81mm mortars. Because of the extra weight of weapons and ammunition, 20 wagons and 1 truck complemented the equipment of this heavy company. The battalion commander allocated elements of this unit to reinforce the main sector of attack or defense.

Given its much larger size, the control of this unit was facilitated by incorporating a Signal section. This section deployed 2 telephone teams, 4 radio teams (generally one radio in HQs and one for each company), 2 blinker light teams and a messenger team. A train of 6 wagons and 7 trucks transported the supplies from the divisional collecting points and provided mobility to the signal section and the battalion headquarters. Overall 835 men fought on a German battalion.

The combat frontages were 1000m when attacking, 2000m when defending and 4000m when fighting a rear-guard action.

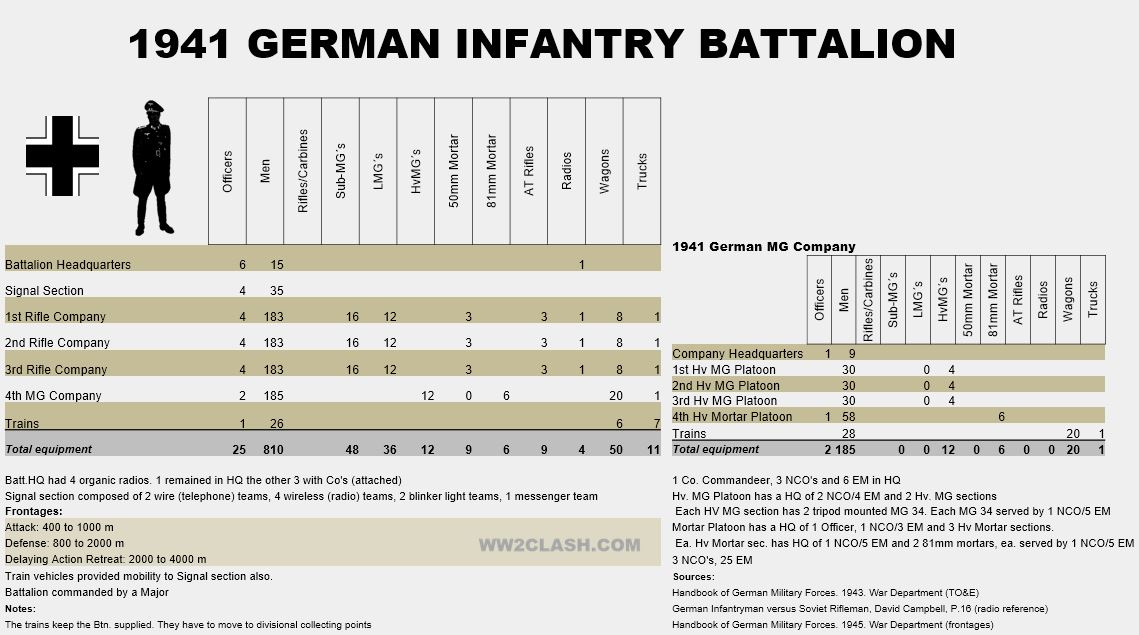

Table of Organization and Equipment of German Infantry Battalion.

The Soviet battalion was 676 men strong with 3 rifle companies and a heavy machine company, the latter with 12 heavy machine guns (but without mortars). Its signal platoon was half the size of the German signal section and only held 2 telephone teams and one radio. The HQ was also two-thirds the size of that of its opponent, making the unit less capable to react quickly to the rapidly changing conditions found in war.

Its vehicle component was only one-third the size of its enemy counterpart and therefore, weaker both in terms of mobility and in terms of being able to sustain the unit in heavy combat.

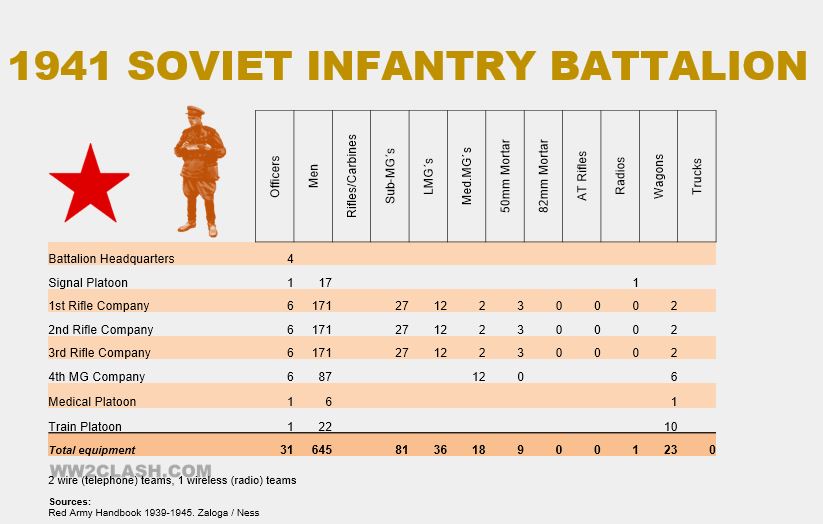

Table of Organization and Equipment of Soviet Infantry Battalion
REGIMENTS

The next unit in organizational complexity above the battalion is the regiment, which was the first formation to deploy artillery guns. Colonels commanded regiments.

Three infantry battalions provided the fighting and maneuver element to the regiment while additional strong units improved its firepower, capabilities, logistics and command and control.

The German infantry regiment incorporated an infantry gun company, named the 13th Infantry Howitzer Company (since the 3 infantry battalions had 12 companies in total). This company had 3 platoons of 75mm light infantry howitzers and 1 platoon of 150mm heavy infantry howitzers. These artillery guns were used in a direct line-of-sight mode to support the infantry by destroying targets that presented themselves and lacked indirect fire capability.

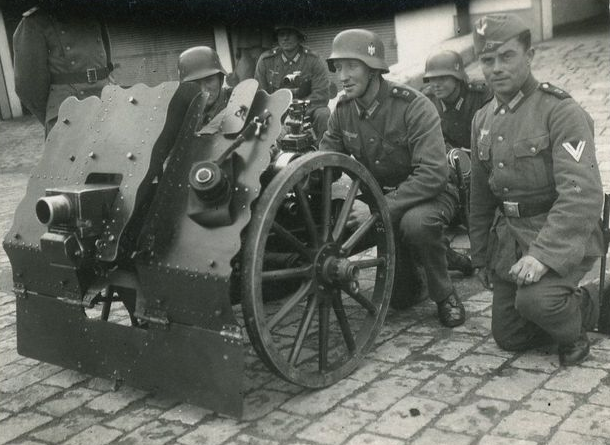

7.5 cm le.GebIG 18 Light Infantry Howitzer

A 14th Anti-Tank Company also formed part of the Regiment structure. This anti-tank company had 4 platoons of the standard 37mm Pak36 anti-tank gun. This gun was light, easy to move and had ample capacity to destroy most of the Soviet tanks in use in 1941 since it could hit a target and penetrate 31mm of armor at a distance of 500 meters. However, it did not have the hitting power to perforate the front armor or side armor of the T-34 except at ranges of 100 m (300ft) or less. It was also a line-of-sight weapon.

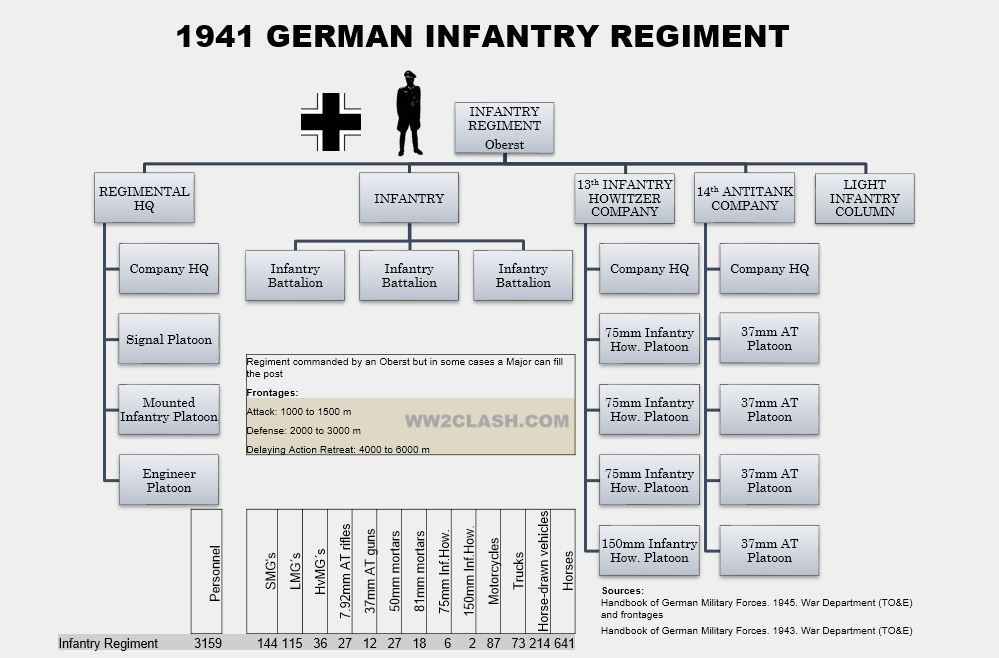

German Infantry Regiment Table of Organization& Equipment (TO&E)

An engineering platoon provided means to create or remove obstacles, place or remove minefields and had the equipment to destroy field fortifications. The signals platoon ensured wire (telephone) and wireless (radio) communication between the regiment commander, the division and its subordinate units.

A mounted infantry platoon gave the commander the capability to carry out tactical reconnaissance ahead of the regiment, while the Company HQ helped the commander to evaluate the information received by the different channels, to create a picture of the situation, and then to disseminate the orders to the subordinate commands.

Finally, a light infantry column made available transport vehicles to keep the regiment supplied for intense engagements and afforded mobility to the units that required priority (i.e. howitzers, AT guns, signals, and the engineering platoon).

Overall 3.159 men fought in a German IR supported by 144 SMGs, 115 LMGs, 36 heavy MGs, 27 AT rifles, twelve 37mm AT guns, twenty-seven 50mm mortars, eighteen 81 mm mortars, six 75mm light infantry howitzers, two 150mm heavy infantry howitzers, 87 motorcycles, 73 trucks, 214 horse-drawn wagons, and 641 horses.

They were capable of attacking a front of 1000 to 1500 meters, defending a front of 2000 to 3000 meters or fighting a delaying action on a front of 4000 to 6000 m.

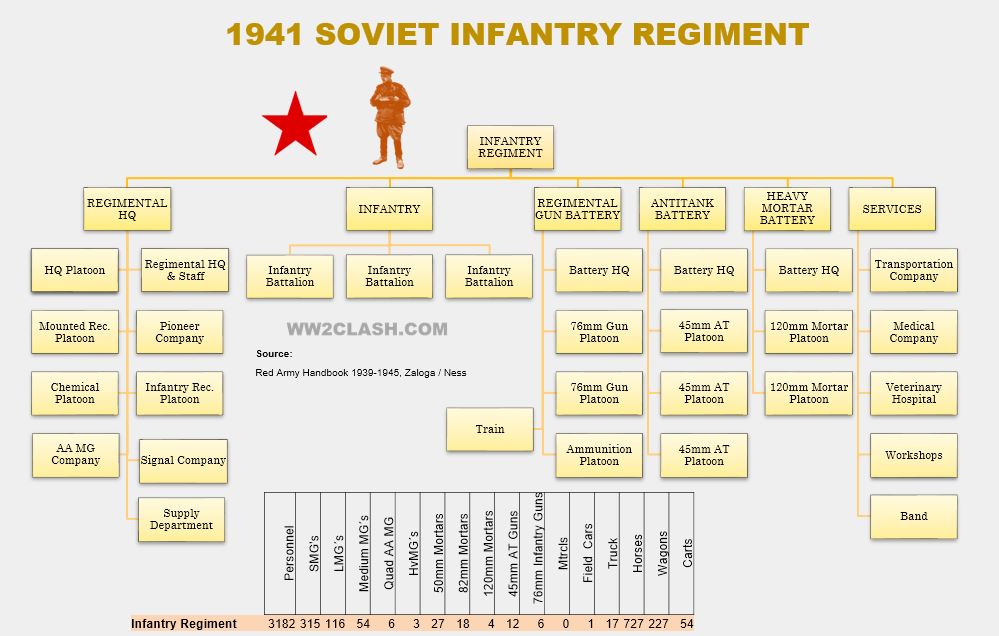

Soviet Infantry Regiment Table of Organization & Equipment (TO&E)

The Soviet infantry regiment was similarly sized, and its equipment provided about the same firepower than its German counterpart. It consisted of 3182 men with 315 SMGs, 116 LMGs, 54 medium MGs, 6 quad AA MGs, 3 heavy MGs, twenty-seven 50mm mortars, eighteen 82mm mortars, four 120mm mortars, twelve 45mm AT guns, six 76mm infantry guns, 17 trucks, 281 horse drawn carts and wagons, and 727 horses.

It was also equally supported with direct fire howitzers, AT guns, logistics, engineers, signals, a mounted reconnaissance platoon, and other units. The main differences were the scarcity of motor transport: no motorcycles and one-fifth the amount of trucks as compared with the Wehrmacht’s IR.

Even in terms of command and control the unit looks similar, which means that it could command and control effectively its subordinate units and link successfully with the division.

Overall at the level of small units, the size, weaponry and firepower of German and Soviet units are almost identical. Quantitative indicators would suggest comparable capacity. Qualitatively, the German units held an advantage thanks to better command and control and somewhat greater mobility and better logistics. These advantages were better put to use in a mobile warfare situation where conditions changed quickly. To accomplish that better training was a requirement.

This proved to be the case (after the fact). It was difficult to quantify these advantages before the actual combats took place.
